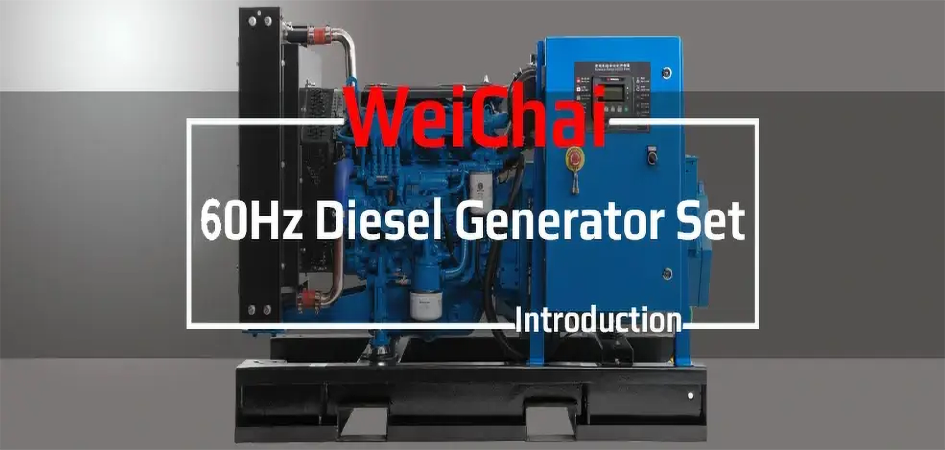

WPG220F86WB Diesel Generator Set
Weichai WPG220F86WB diesel generator set is the complete generator set manufactured by Weichai group in Weifang, Shandong. Weichai WPG220F86WB diesel generator set powered by Weichai WP10 series diesel engine, comes with 50-degree aluminum radiator, coupled with Weichai alternator, controlled by Deepsea 6120 intelligent generator set controller.
The prime power for 60 Hz of Weichai WPG220F86WB Series diesel generator set (1800 RPM) is 200 kW.
The code B in the model name indicates that the unit is an open unit, the code F in the model name indicates the chassis fuel tank, the code L in the model name indicates the low noise unit, the code T in the model name indicates the trailer power station, the code in the model name indicates C represents the square cabin power station.
As official exporting agent of Weichai PowerGen, EMAC is a professional power system solution provider, we provide one-stop power system solutions for customer from all over the world, from power system design to power system supply, from installation to commissioning, from after-sales services support to parts supply, EMAC is your reliable power system partner that give you best value for money and reliable system solution.
Advantages of WPG220F86WB Series Engine
1. It is synchronized with Weichai advanced design and sophisticated manufacturing, adapts to harsh working conditions, and has high-intensity and heavy-duty work capabilities.
2. The Holset wastegate valve makes the low speed performance more perfect and the power performance better.
3. The cylinder block and cylinder head adopt integrated design to prevent the occurrence of engine water and oil leakage. The parts are 40% less than other similar engines, and the failure rate is greatly reduced.
4. Using forged steel camshaft and crankshaft, high-strength cylinder design, many parts are cast on the cylinder, with high rigidity, high pressure resistance, good reliability and longer service life.
5.The cylinder liner adopts a platform mesh honing design, which effectively prevents oil leakage with a perfect geometric structure, and adopts advanced technology such as new piston ring components and gasket crimping molding to reduce oil loss.
6. Holset supercharger with integrated wastegate valve, low speed response and strong power.
Basic Introduction of WPG220F86WB Landbased Diesel Genset
|Prime Power:||250 kVA|
|Genset Frequency:||60 Hz|
|Rated Power:||1500 r/min @ 2200 kW|
|Genset Dimension:||2999 mm * 1170 mm * 1920 mm|
|Wet Weight:||2260 kg|
|Lead Time:||15-30 Working Days|
|Payment Terms:||T/T ,L/C|
|WPG200F86WB||225 kVA||WP10D238E201||Weichai||WHA-225-4/0.22||2999 * 1170 *1920 mm|
|WPG200F86LB||225 kVA||WP10D238E201||Leroy Somer||TAL-A44-M||2999 * 1170 *1920 mm|
|WPG220F86WB||250 kVA||WP10D264E201||Weichai||WHA-250-4/0.22||2999 * 1170 *1920 mm|
|WPG220F86LB||250 kVA||WP10D264E201||Leroy Somer||TAL-A46-C||2999 * 1170 *1920 mm|
|WPG250F86WB||280 kVA||WP10D288E201||Weichai||WHA-284.5-4/0.22||2999 * 1170 *1920 mm|
|WPG250F86LB||280 kVA||WP10D288E201||Leroy Somer||TAL-A46-D||2999 * 1170 *1920 mm|
|WPG300F86WB||350 kVA||WP10D360E201||Weichai||WHA-350-4/0.22||2999 * 1170 *1920 mm|
|WPG300F86LB||350 kVA||WP10D360E201||Leroy Somer||TAL-A46-G||2999 * 1170 *1920 mm|
General Information of Weichai WPG220F86WB Generator
|Generator Model||WPG220F86WB||Generator Type||Open Type with Fuel Tank|
|Prime Power (kVA)||250||Prime Power (kW)||200|
|Standby Power (kVA)||275||Standby Power (kW)||220|
|Generator Frequency (Hz)||60||Engine Speed (r/min)||1500|
|Generator Voltage (V)||110-120 190-208 208-240 300 346 380-416 416-480 600 660-690 4160 7200 11400 12470-13800||Power Factor||0.8|
|Number of Phase||Three-Phase Four-Wire||Protection Class||IP23|
|Insulation Class||H||Temperature Raise Class||H|
|Standard Fuel Tank Capacity (L)||50.97||Generator Color||Weichai Blue|
|Engine Model||WP10D264E201||Engine Prime Power (kW)||240|
|Alternator Brand||Weichai||Alternator Model||WHA-250-4/0.22|
|Control Panel Brand||DeepSea||Control Panel Model||DSE 6120|
|Air Circuit Breaker Brand||CHINT||Air Circuit Breaker Tripping Current||800A|
|Packing Standard||Plywood Box||Battery||2 Units Camel 120Ah|
|Generator Dimension (mm)||2999*1170*1920||Wet Weight (kg)||2260|
